Brand : HEIDENHAIN
LC 496F
-

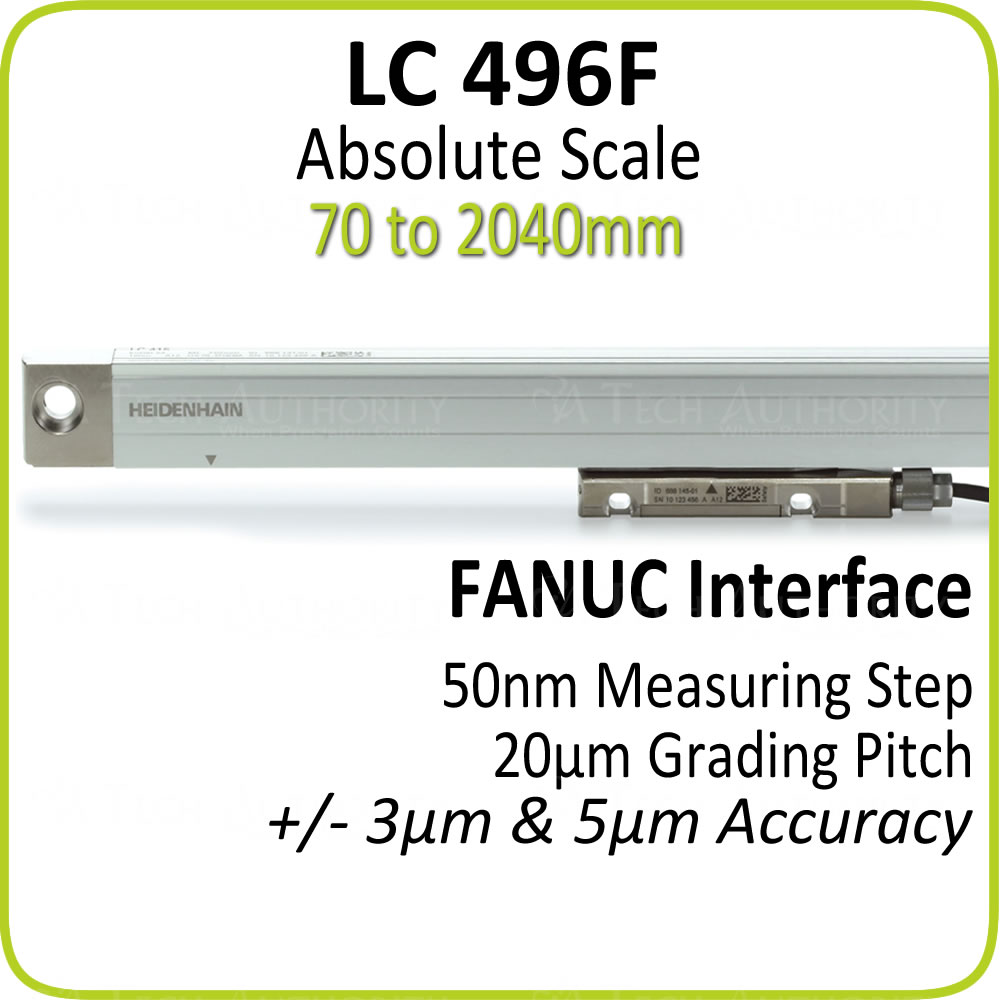

The HEIDENHAIN LC 496F sealed absolute slimline linear scale for travels up to 2040mm, optimized scanning with FANUC05 interface, featuring a compact design ideal for limited installation space and easy installation with mounting rail. The LC 4xx series offers a variety of interfaces, such as EnDat, Fanuc, Mitsubishi, Panasonic, and DRIVE-CLiQ.
- Request A Quote
Description
The HEIDENHAIN LC 496F absolute sealed linear encoder with small cross section offers HEIDENHAIN's new optimal scanning principle and has the following features:
- Measuring lengths from 70mm to 2040mm
- Accuracy grades of 3µm or 5µm
- 20µm grating period
- Two measuring steps: 1.2500nm and 10.0000nm
- Data interface: Fanuc05 Serial interface ALPHA/ALPHAi
