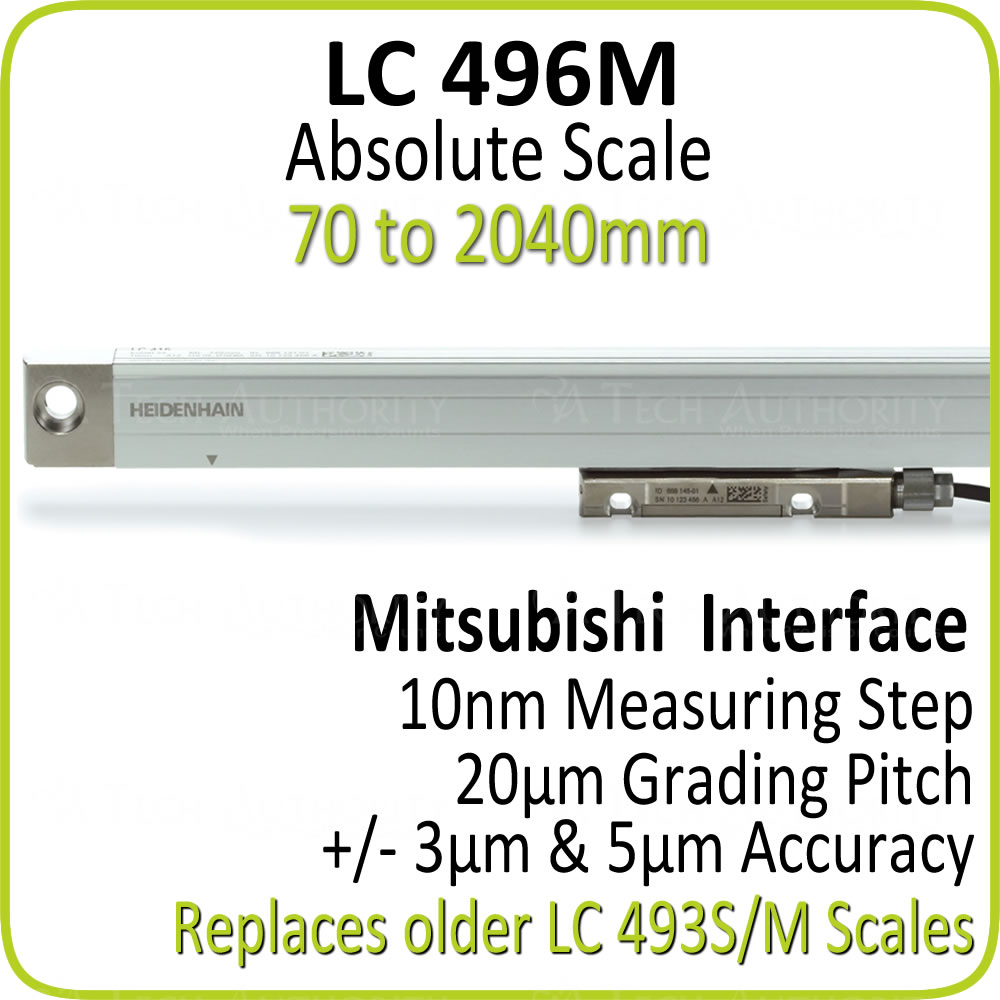

The HEIDENHAIN LC 496M sealed absolute slimline linear scale for travels up to 2040mm with optimized scanning and Mitsubishi interface.  The LC 400 series are a slimline scale housing feature a compact design for limited installation space and easy installation with mounting rail.  The LC 4xx series offers a variety of interfaces, such as EnDat, Fanuc, Mitsubishi, Panasonic, and DRIVE-CLiQ.

The HEIDENHAIN LC 496M absolute sealed linear encoder with small cross section offers HEIDENHAIN's new optimal scanning principle and has the following features:

• Measuring length from 70mm to 2040mm
• Accuracy grades of 3µm or 5µm
• 20µm grating period
• Two measuring steps: 1.2500nm and 10.0000nm
• Mitsubishi high speed data interface
